Home  >  Motors  >  Refrigeration  >  Watt Motor  > ESP-0L50EM2B MOTOR

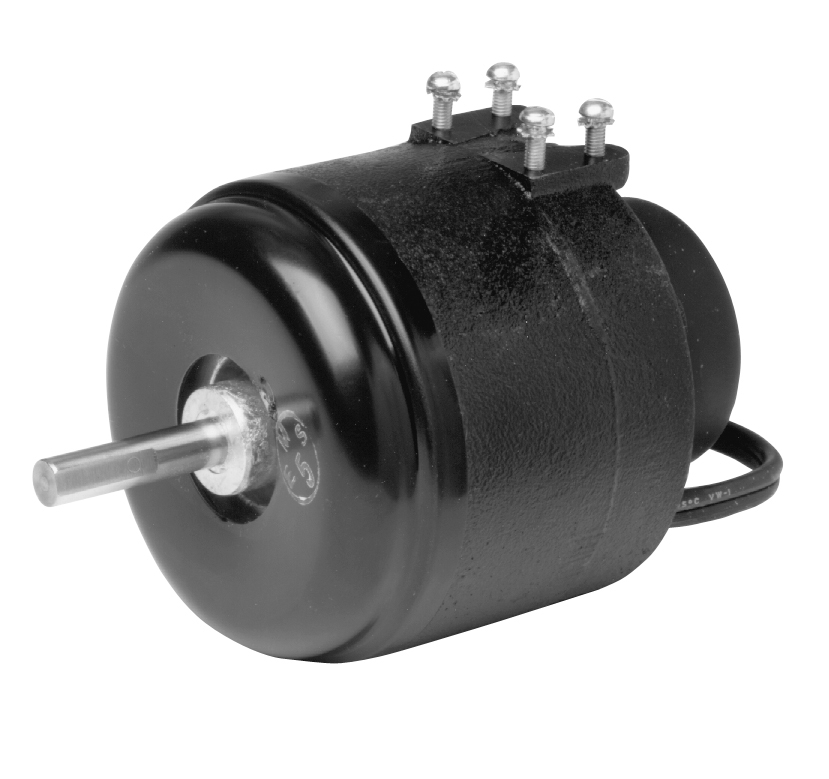

ESP-0L50EM2B MOTOR

Motor Type Shaded Pole Enclosure TEAO HP (Max.) 50 Watt Voltage 230 Mounting Pad/Bracket Speeds 1 Hz 60 Rotation CW RPM Range 1550 NEMA Frame Size 51 Phase Single Standards UL/CUL FLA 0.85 Bearing Unit Lead Length (in.) 22 Thermal Protection Yes Ambient Deg C 40 Ins. Class B Shaft Dia. (in.) 5/16 Smooth Flatted Shaft Capacitor Included No Shaft Length (in.) 1.5 Service Factor 1.0 Duty Continuous
Item #: 00505
ESP-0L50EM2B MOTOR

EM&S High Efficiency Shaded Pole Motors

  • Cast Iron Unit Bearing
  • Single speed
  • End or side pad mounting
  • Smooth Flatted Shaft
  • Heat isolated oil pump and reservoir

    • Motors

    Motor Type
    Shaded Pole
    Enclosure
    TEAO
    HP (Max.)
    50 Watt
    Voltage
    230
    Mounting
    Pad/Bracket
    Speeds
    1
    Hz
    60
    Rotation
    CW
    RPM Range
    1550
    NEMA Frame Size
    51
    Phase
    Single
    Standards
    UL/CUL
    FLA
    0.85
    Bearing
    Unit
    Lead Length (in.)
    22
    Thermal Protection
    Yes
    Ambient Deg C
    40
    Ins. Class
    B
    Shaft Dia. (in.)
    5/16 Smooth Flatted Shaft
    Capacitor Included
    No
    Shaft Length (in.)
    1.5
    Service Factor
    1.0
    Duty
    Continuous
    Brand
    EM&S
    Pack Qty
    1
    Case Qty
    8
    Length
    8.00 in.
    Width
    4.60 in.
    Height
    4.10 in.
    Weight
    5.7500 lbs
    Harmonized Tariff Code
    8501402040
    UPC
    685744005056
    Country of Origin Code
    US
    Country of Origin Name
    United States
